Independent Commercial Project | Contractor Network Service LLC | 2025

Independently planned and completed a commercial structured-cabling installation consisting of 14 CAT6 connections across seven offices, managing the project from initial site survey and estimating through installation, testing, troubleshooting, and final delivery.

I completed this commercial network infrastructure installation through Contractor Network Service LLC for an independently owned insurance office. Although this was my first professional structured-cabling installation, I had prior experience with networking fundamentals and managed the project independently from initial customer consultation through final testing and delivery.

The project began with an on-site survey to evaluate the existing network infrastructure, understand the customer's requirements, and determine practical cable routes throughout the building. From there, I developed the project scope, estimated material requirements, prepared the bid, purchased the necessary equipment and materials, and coordinated the installation directly with the customer.

The completed system provided 14 CAT6 network connections across seven offices, with two connections available in each office. The work also included removal of the previous network infrastructure, installation and organization of the new cabling, termination and labeling, rack and patch-panel integration, and verification of each completed connection.

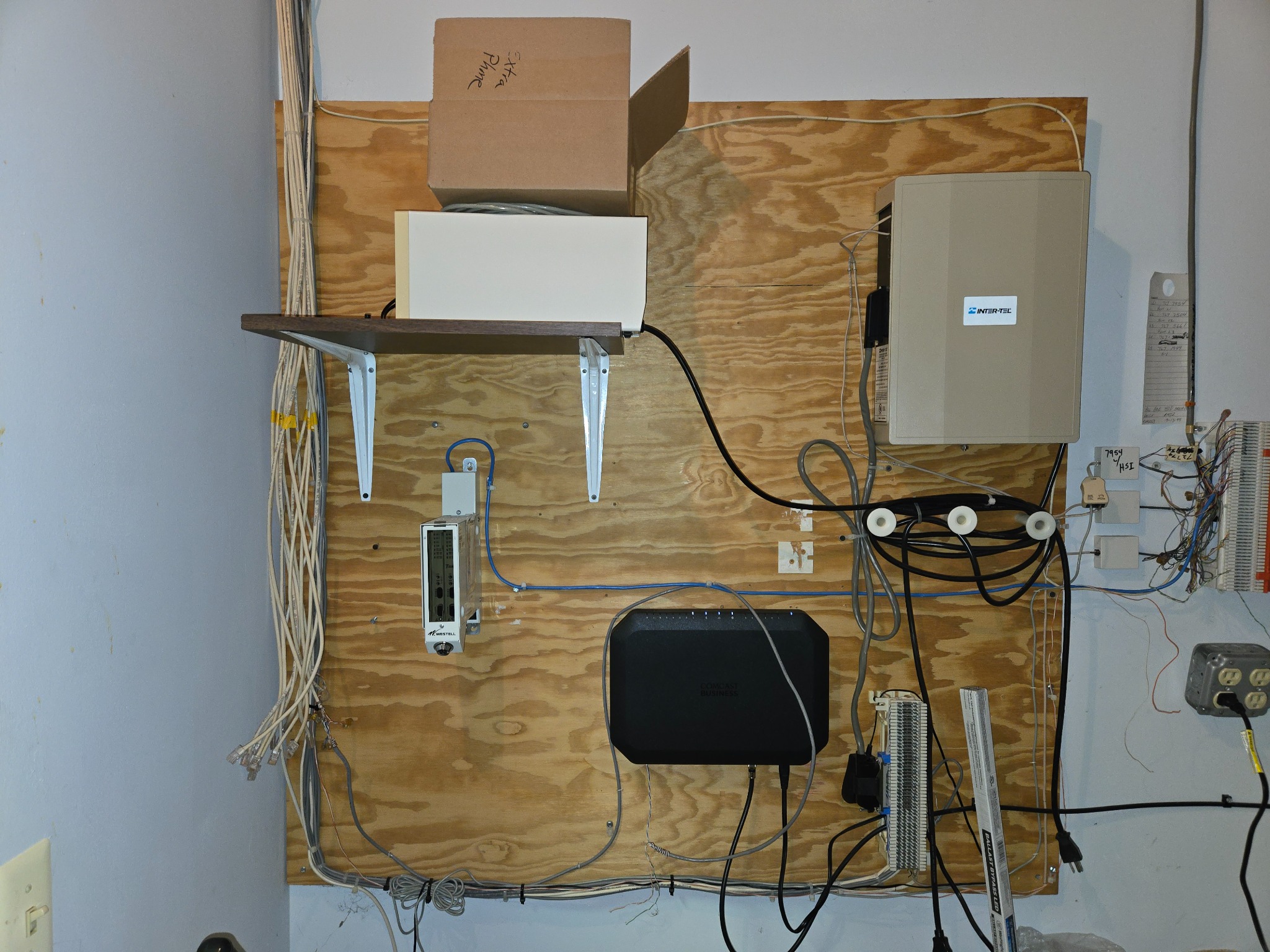

Before developing the final installation plan, I surveyed the facility to identify each office location, existing network equipment, potential cable pathways, and the approximate distances required for each run.

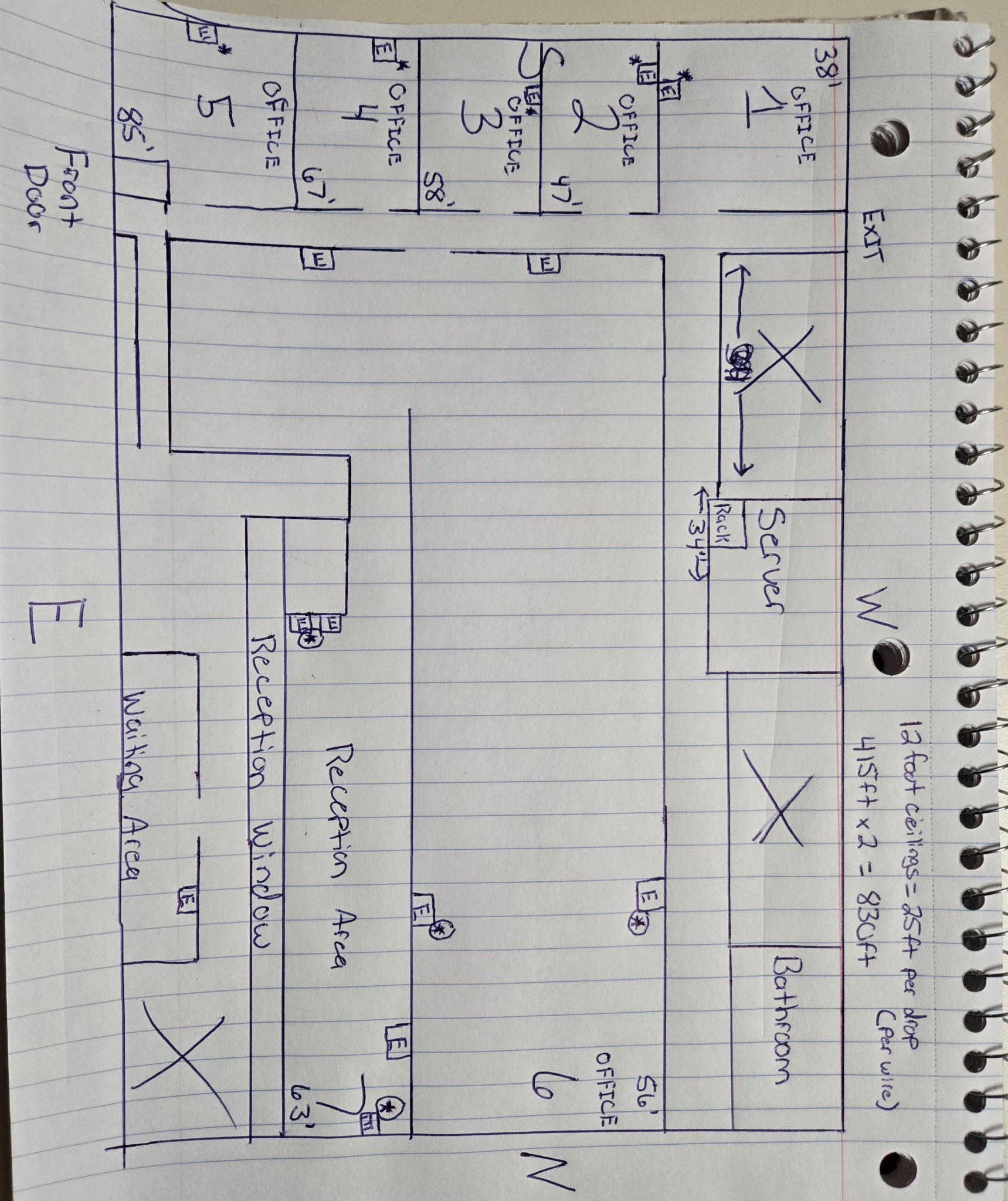

I created a working floor-plan sketch to map the seven offices and planned connection points while estimating cable lengths and material requirements. The survey also helped identify practical routing options through the building's accessible ceiling areas and determine how the new runs would converge at the network equipment location.

Using the information collected during the survey, I established the project scope, calculated material requirements, selected the necessary networking components, prepared the customer estimate, and purchased the materials required for installation.

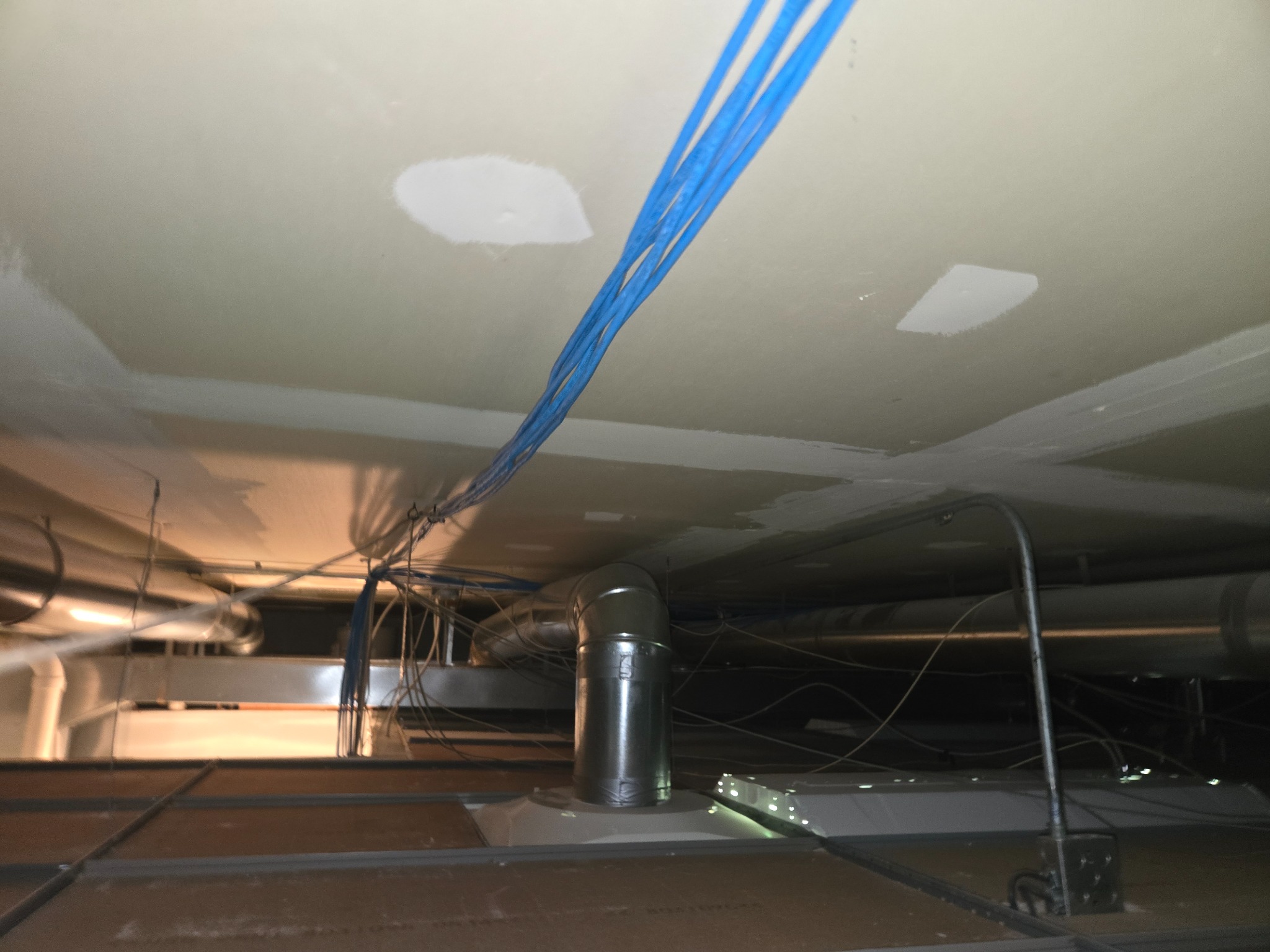

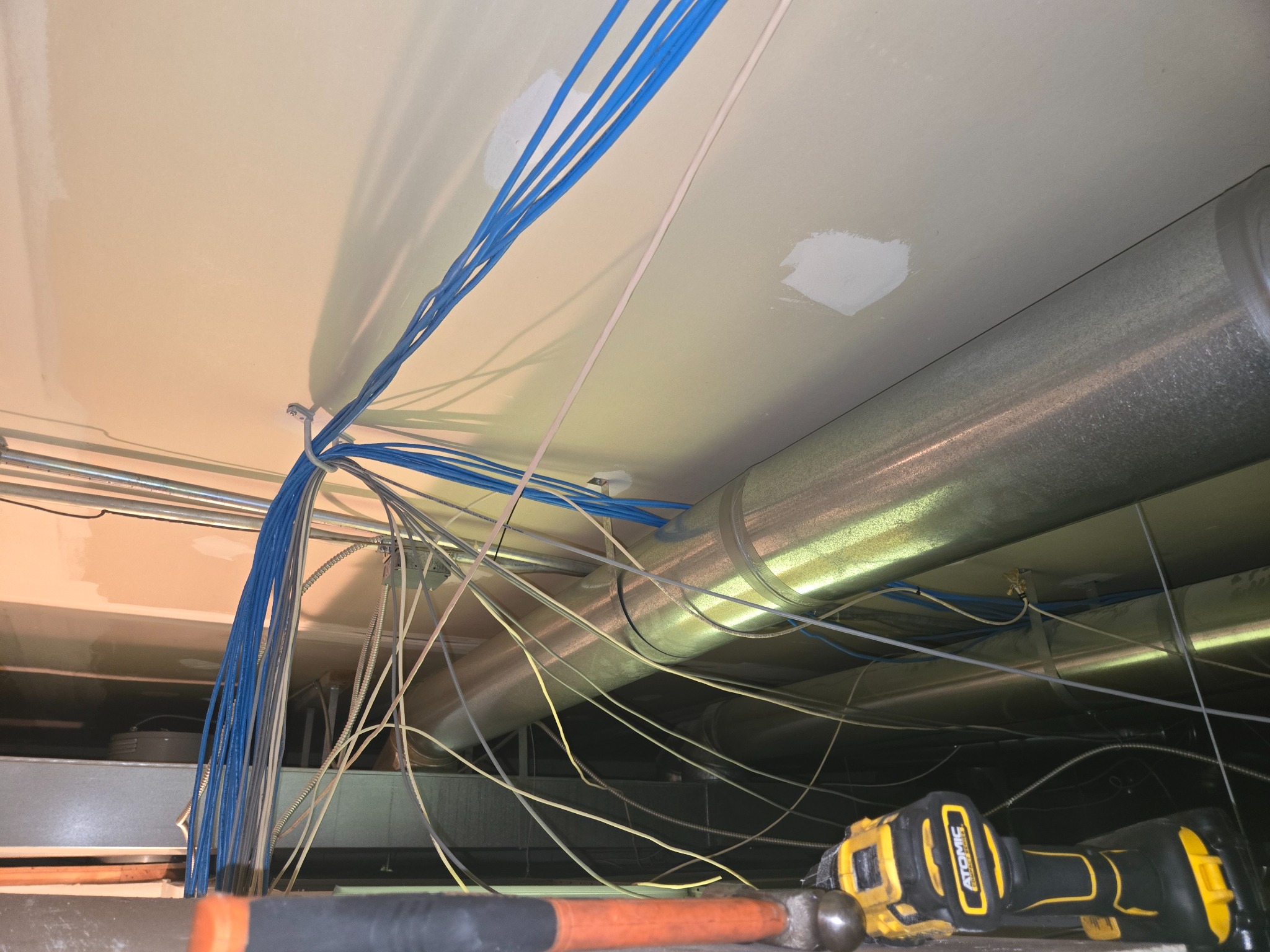

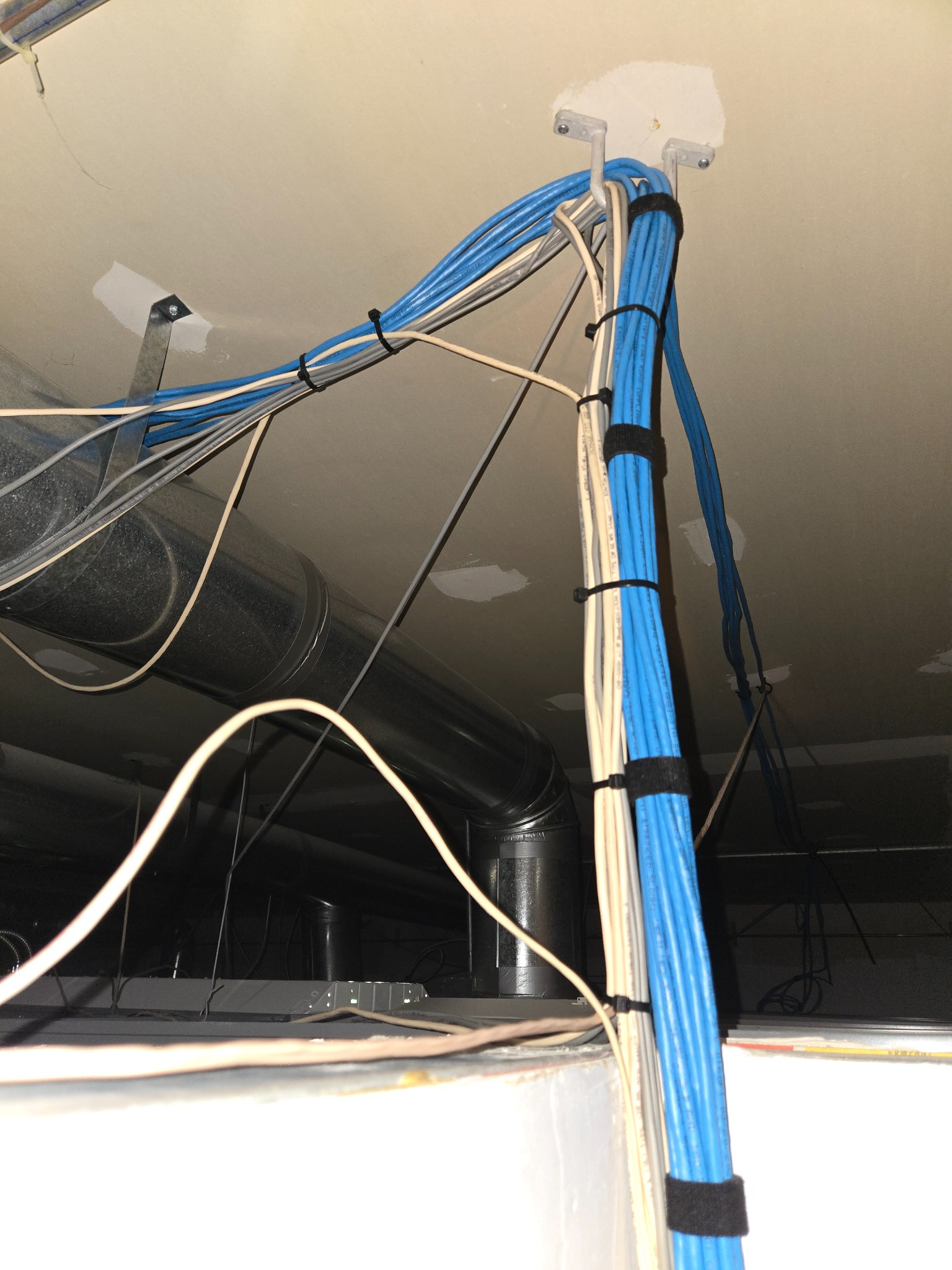

Following the site survey and material planning, I removed the previous network infrastructure and began installing the new CAT6 system. Cable runs were routed from the seven office locations back to the centralized network area, with attention to organization, accessibility, and maintaining practical pathways through the existing building infrastructure.

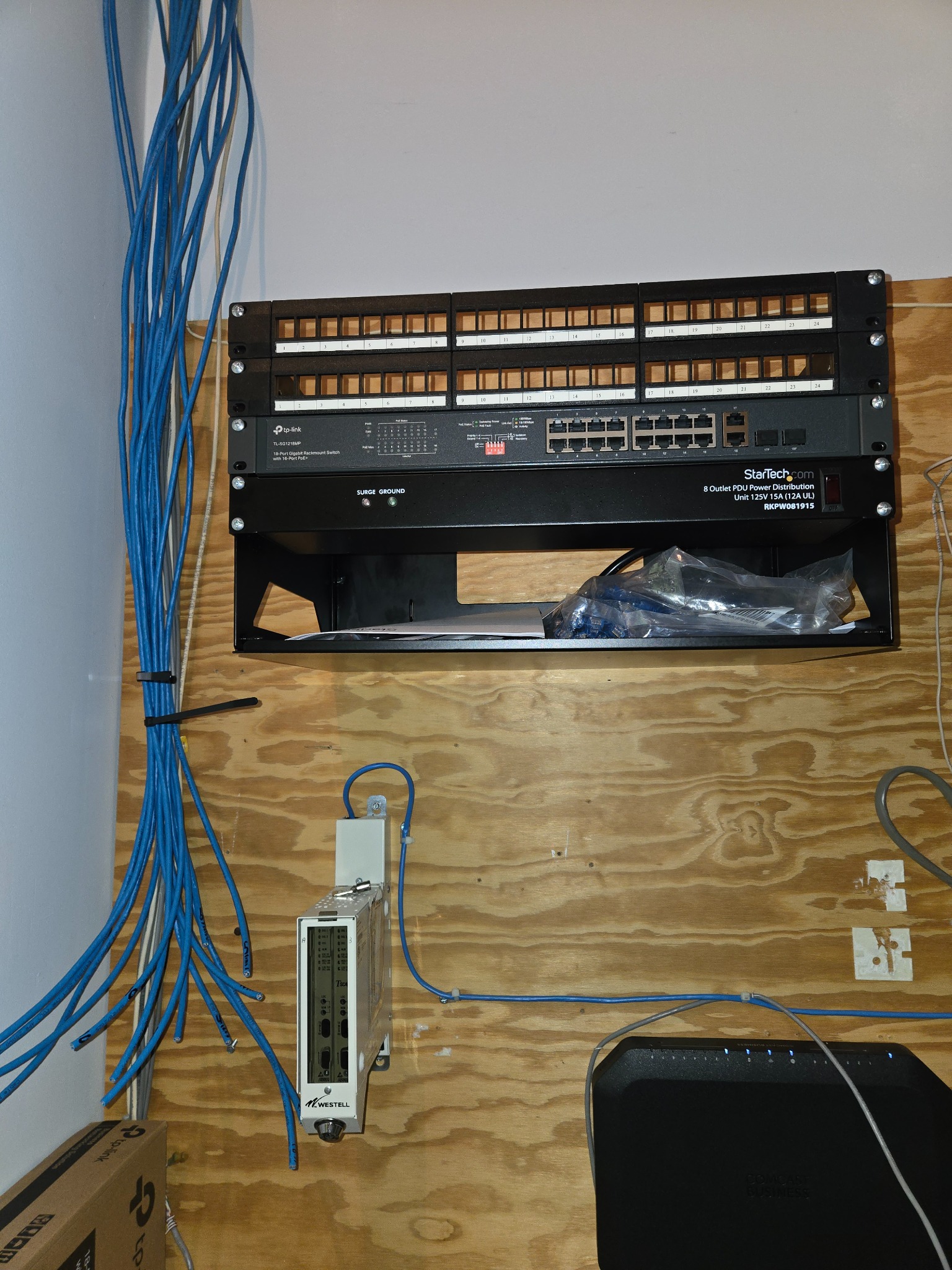

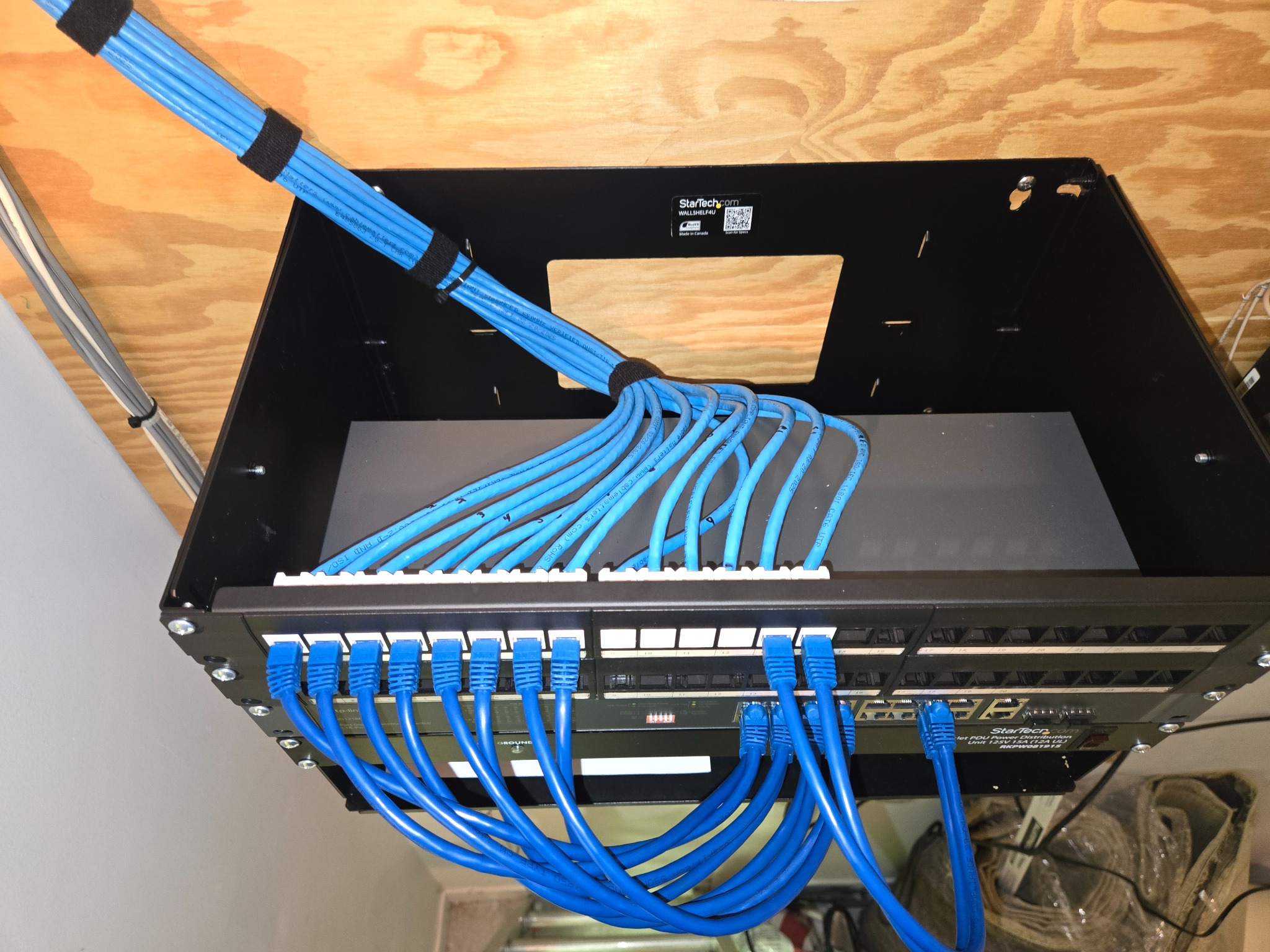

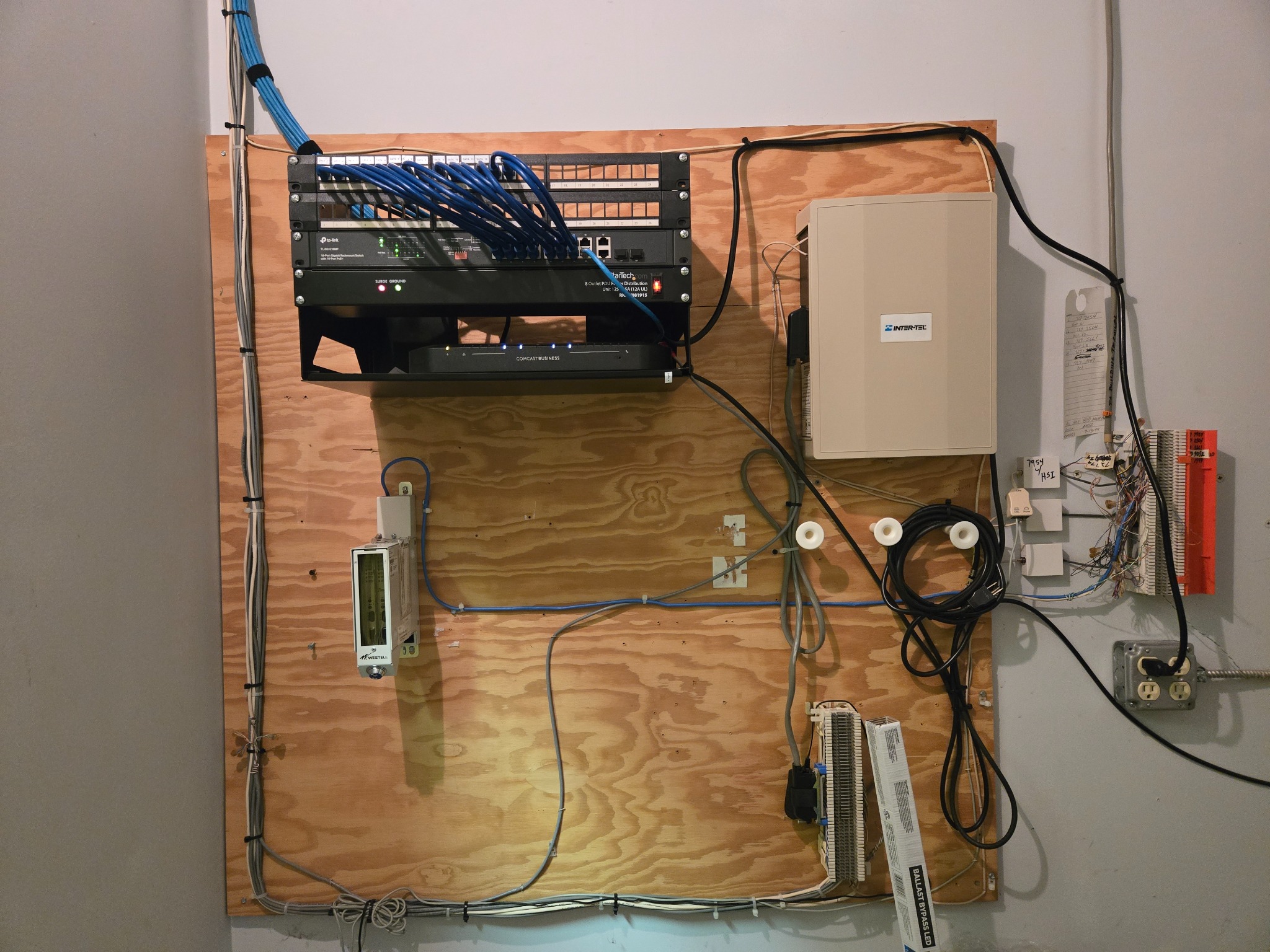

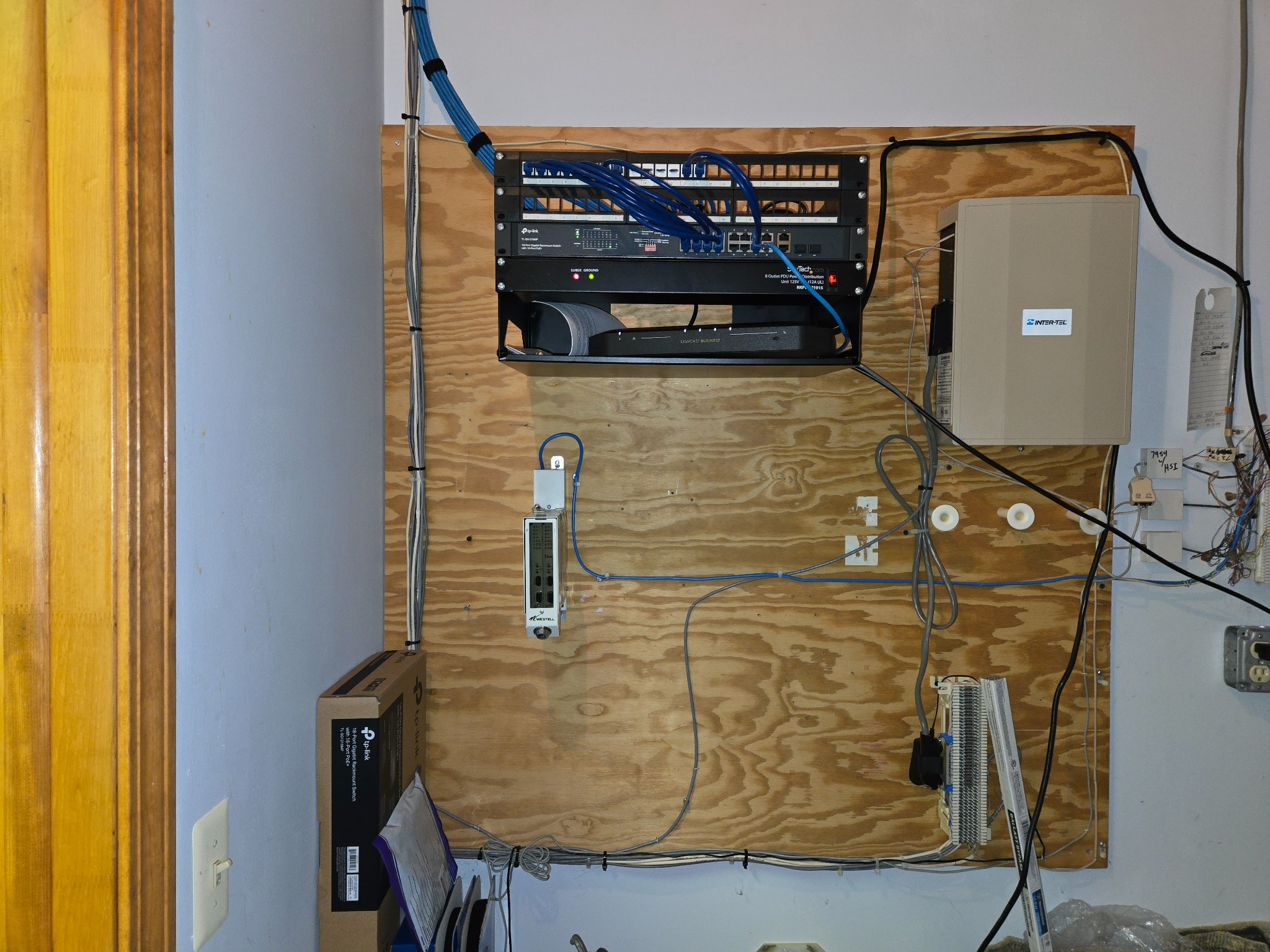

As installation progressed, the incoming CAT6 runs were organized at the network location and integrated into the new rack-mounted system, including the patch panels, network switch, power distribution, and supporting equipment.

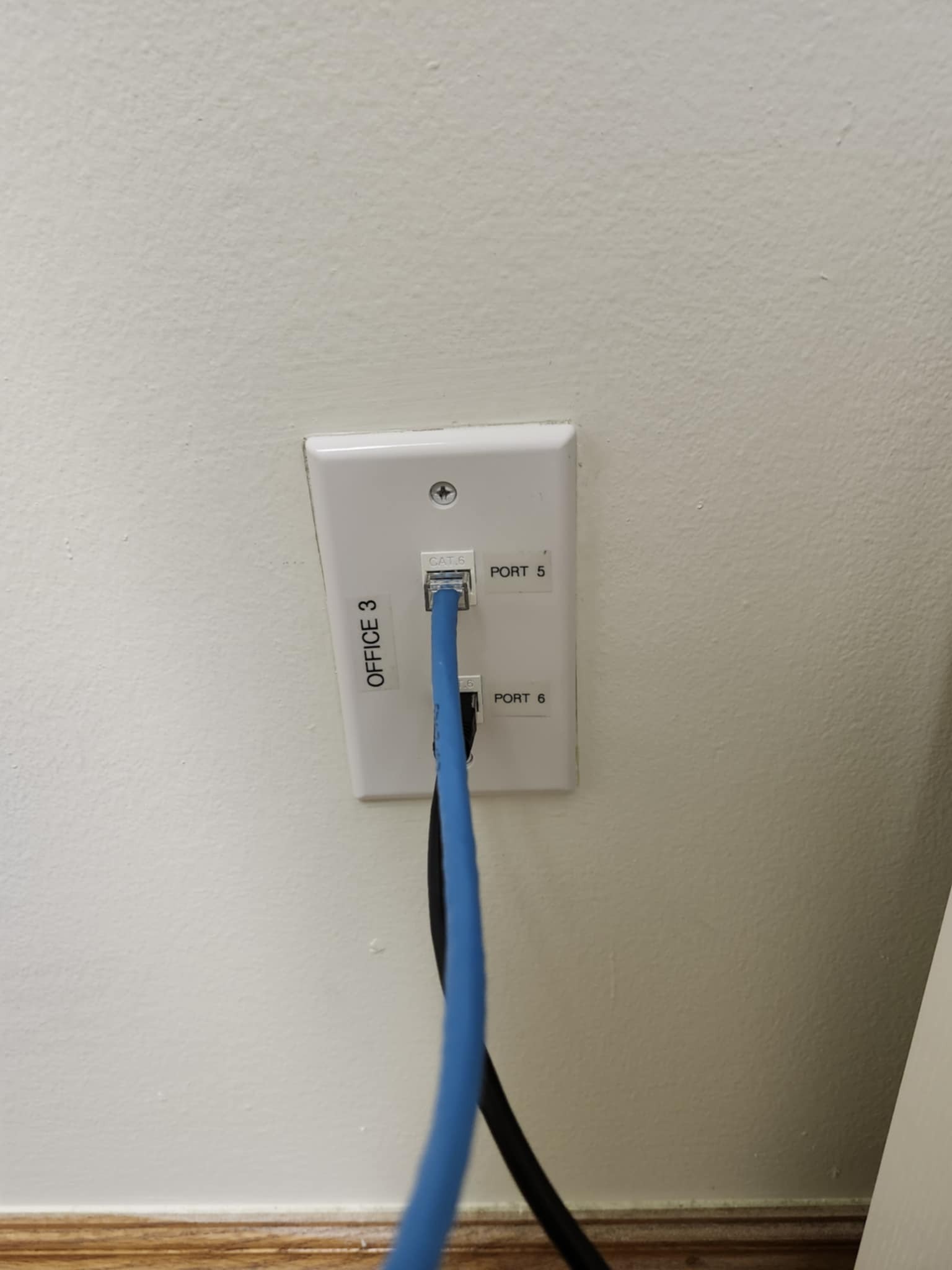

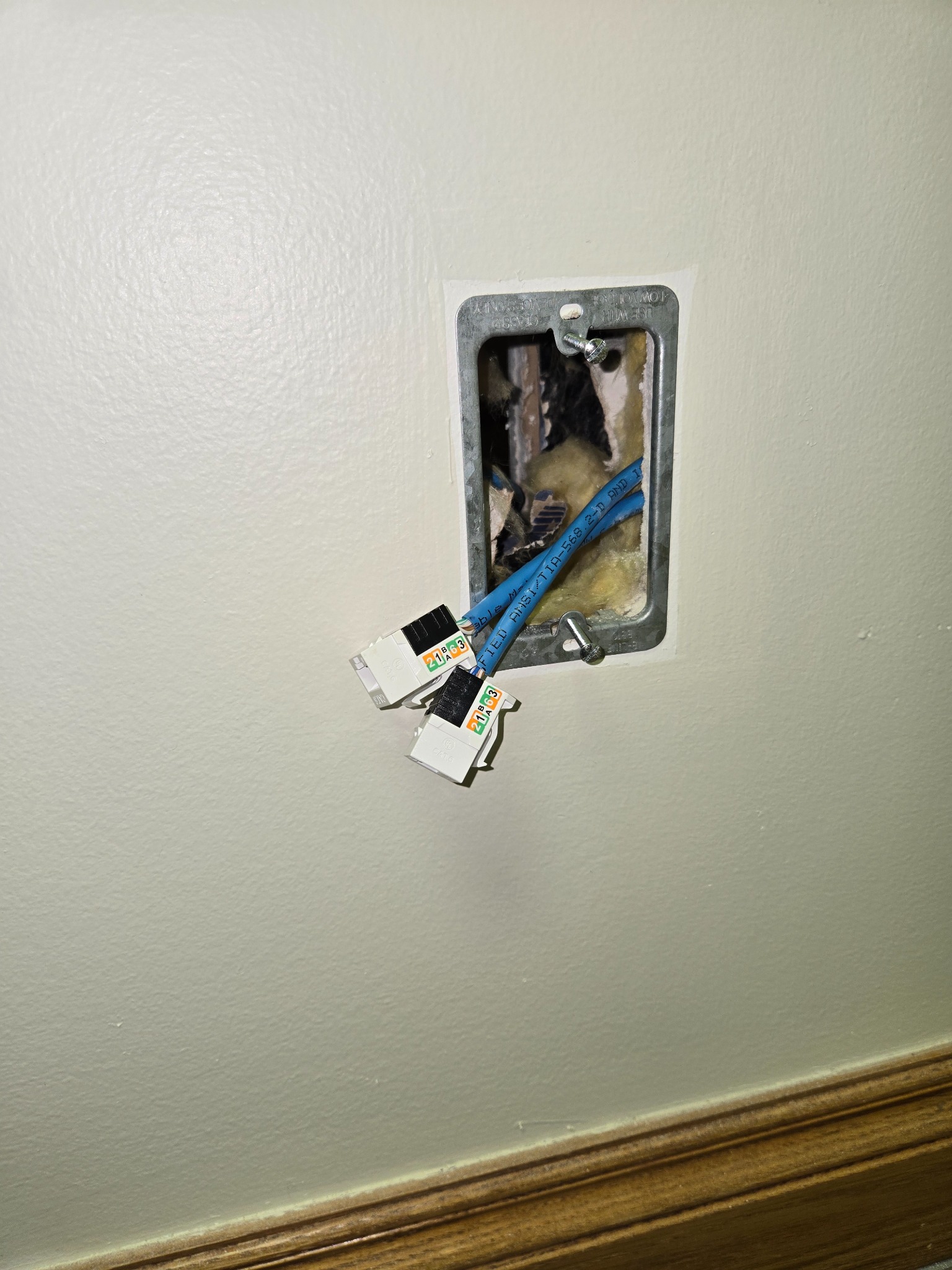

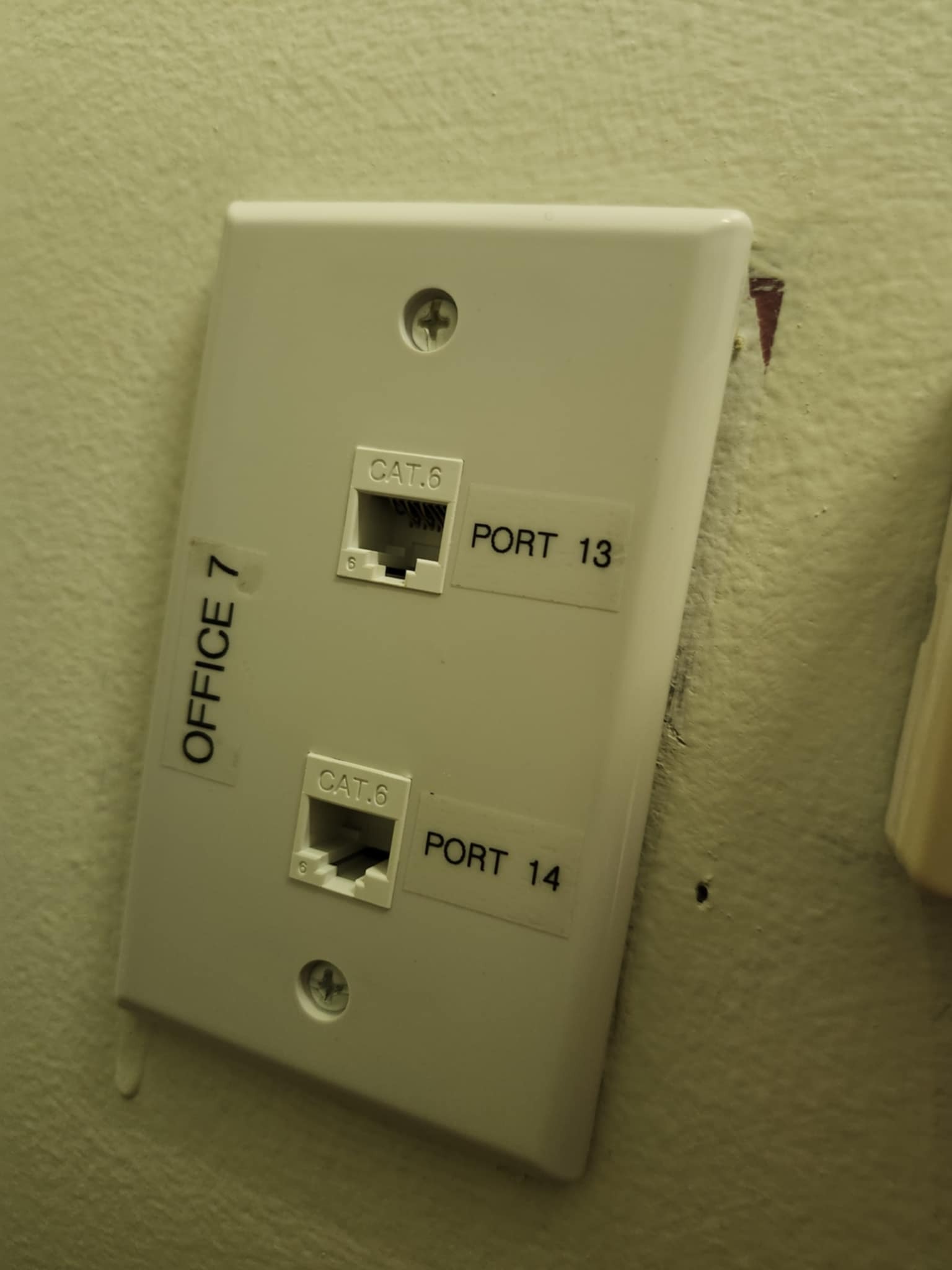

Each office received two CAT6 connections, with individual cable runs terminated at the office wall plate and corresponding positions at the centralized patch panel. Connections were labeled to provide a clear relationship between each office port and its associated network termination.

Maintaining consistent termination and labeling made the completed system easier to verify, troubleshoot, and service while providing the customer with an organized network infrastructure rather than a collection of unidentified cable runs.

After installation and termination, I tested each completed CAT6 connection to verify continuity and proper end-to-end connectivity before final delivery.

During testing, one connection did not pass verification. I traced the issue to an improper termination, corrected the connection, and retested the run successfully. This verification process ensured that all 14 installed connections were functioning properly before the system was turned over to the customer.

The completed installation delivered 14 tested CAT6 network connections across seven offices, providing two connections at each office location and consolidating the new infrastructure at a centralized rack-mounted network area.

The project was completed within the agreed scope and schedule and included a one-year labor warranty in addition to applicable manufacturer warranties. No warranty service calls or corrective work were required during the one-year warranty period.

14 CAT6 Connections | 7 Offices | 1-Year Labor Warranty | 0 Warranty Callbacks

Project & Customer
Customer Consultation • Site Survey • Project Scoping • Estimating & Bidding • Material Procurement • Project Ownership

Technical
CAT6 Structured Cabling • Cable Routing • Termination • Patch Panels • Rack Installation • Labeling • Network Testing • Troubleshooting

Execution
Installation Planning • Infrastructure Organization • Quality Verification • Customer Delivery • Warranty Support

A concise project brief documenting the scope, planning, installation process, verification, and final results of this commercial network infrastructure project is available below.
